Quantity takeoff
Measured quantities organized by the agreed trade and system. Your team supplies or confirms pricing, production rates and final markups. Specify any drawing markups and workbook format you need.
Review quantity takeoff scope →Commercial Mechanical Piping Estimating Services
Precision wet-side piping takeoffs for commercial mechanical contractors. We quantify chilled water, hydronic heating, steam, condensate, boiler plants, and process piping systems nationwide.
Project-based estimating fees. Confirm scope, fee and delivery after document review.
Send your bid documents
Request a mechanical piping estimate
Tell us the project location, trade scope and whether you need quantities only or a priced estimate. Add your bid deadline if you have one.
Useful documents for a scope review
- Piping plans, risers, P&IDs and equipment schedules as applicable
- Pipe material, joining, valve, insulation and testing specifications
- System limits, tie-in details and current revisions
Upload the available set, or include a shared drawings link in your message. Note missing documents and any items you want excluded.
What happens next?
We review the available documents and clarify the requested package. The proposal establishes deliverables, fee, revision scope and delivery milestones before estimating work starts.
Review estimating fees and scope questions or call (317) 751-5969.
Prepare a bid you can review
Mechanical piping Takeoff Package: What to Request
For piping contractors preparing hydronic or mechanical bids, the useful output is a traceable schedule your team can price and check. Organize the takeoff by system, line specification and joint method so supplier quotes and labor inputs apply to the correct assemblies.
| Package | Quantity breakdown | Check before pricing |
|---|---|---|
| Pipe runs | Length by system, diameter, material and joint type | Riser routing, equipment limits and revision references |
| Fittings, valves and trim | Counts by size, specification and equipment package | Vendor-supplied assemblies versus field-furnished components |
| Supports, insulation and testing | Documented support/insulation scope and testing requirements | Trade responsibility, access assumptions and project-specific exclusions |
A scope gap to check
Equal pipe diameters do not make welded and grooved systems interchangeable. Keep joint counts, fitting classes, insulation and test boundaries traceable when pricing each system.
Need material quantities for your own pricing? Choose a quantity-only takeoff. Need labor and cost inputs assembled with quantities? Review priced bid estimating. Identify the intended package in your enquiry so the proposal covers the work you need.
Piping revision and scope review checklist → · Fees and revision scope · Send your project documents
Wet-Side Mechanical Specialization
Itemized Takeoffs for Mechanical & Piping Contractors
Commercial hydronic piping and central utility plants represent major financial exposure on mechanical bids. JLG Estimating delivers granular, piece-by-piece takeoffs that distinguish between shop fabrication and field installation hours across welded, grooved, and threaded pipe assemblies.
Our estimators analyze mechanical flow diagrams, riser schematics, floor plans, and boiler/chiller details. We trace every diameter run, valve specialty, expansion joint, and structural unistrut pipe hanger to organize the agreed piping scope and identify open quantity questions for bid review.
Hydronic & Chilled Water Loops
Complete quantification of closed-loop cooling and heating hydronic piping:
- Chilled Water (CHW) supply & return carbon steel/copper piping
- Heating Hot Water (HHW) distribution to coils, VAVs & baseboards
- Condenser Water (CW) cooling tower loop piping
- Glycol feed systems & expansion tank connections
Steam & Central Boiler Plants
Heavy commercial steam distribution and boiler equipment connections:
- Low-pressure and high-pressure steam distribution headers
- Pumped & gravity condensate return piping (Schedule 80)
- Boiler blowdown, feed water tanks & deaerator piping
- Float & thermostatic (F&T) and thermodynamic steam traps
Valves, Specialties & Supports
Granular line-item counts of all valves and mechanical equipment hookups:
- Butterfly valves, flanged gate valves, check & ball valves
- Triple-duty valves & suction diffusers on pump bases
- Bellows expansion joints, guide loops & vibration isolators
- Clevis hangers, roller supports, riser clamps & seismic bracing
Piping Workbook Deliverable
Mechanical Piping Takeoff Organization
We categorize your piping package by pipe size, material schedule, and connection method to give your fabrication shop immediate utility.
| Piping System | Pipe Material / Schedule | Connection Type | Takeoff Data Grouping |
|---|---|---|---|
| Chilled Water Mains (CHW) | Carbon Steel Sch 40 (2-1/2-inch to 14-inch+) | Roll-Grooved / Butt-Weld | Mains, risers, pump headers & valve assemblies |
| Chilled Water Runouts | Hard Copper Type L (1/2-inch to 2-inch) | Soldered / Press-Fit | Terminal FCU/VAV runouts with coil hookup kit |
| Heating Hot Water (HHW) | Carbon Steel Sch 40 / Copper | Grooved / Welded / Soldered | Boiler loops, distribution mains & fin-tube runouts |
| Steam Distribution | Schedule 40 Carbon Steel | Butt-Welded / Flanged | High/low pressure steam with drip legs & trap kits |
| Condensate Return | Schedule 80 Carbon Steel | Welded / Threaded | Gravity condensate & pumped receiver return lines |
| Pipe Thermal Insulation | Fiberglass with ASJ / Elastomeric | Linear Footage by Diameter | Separated by hot lines vs. cold chilled water lines |

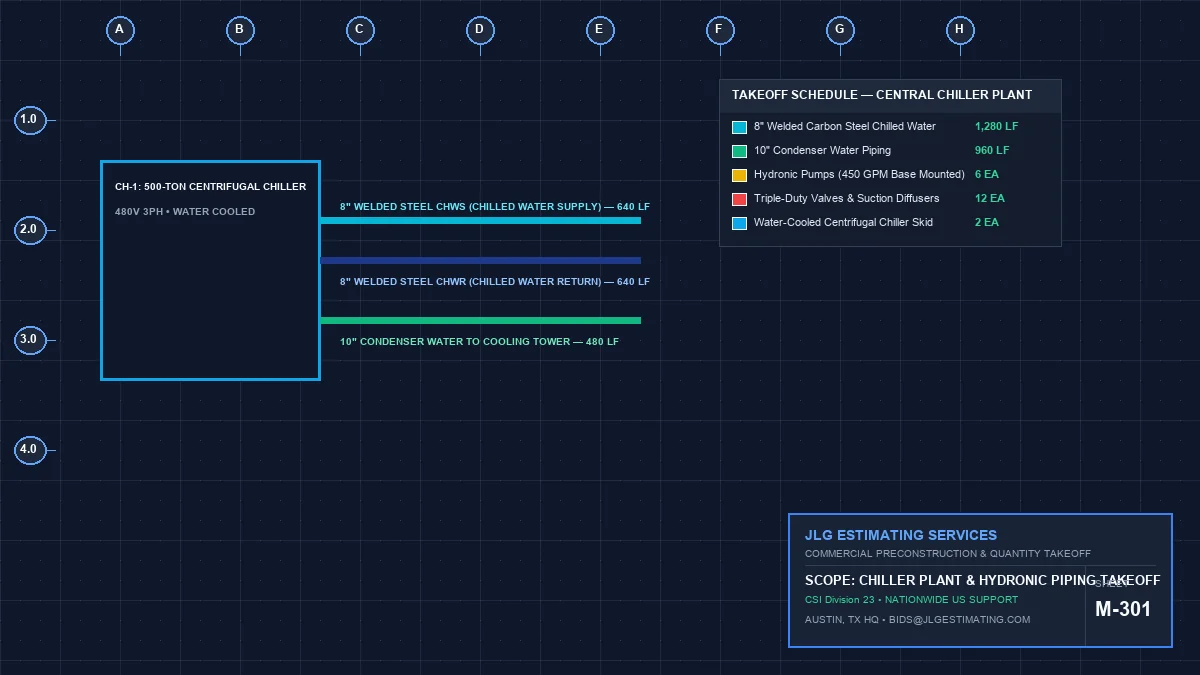

Central Energy Plants
Estimating Central Utility Plants: Chillers, Boilers & Towers
Mechanical piping estimating reaches peak complexity inside central utility plants (CUP) and boiler rooms. Large diameter headers, heavy valving, vibration isolators, and tight mechanical room footprints require meticulous preconstruction review:
1. Primary-Secondary vs. Variable Primary Pumping
We analyze schematic piping flow diagrams (P&IDs) to identify bypass control valves, decouple bridges, differential pressure sensors, and suction diffuser assemblies. We measure header manifolds with appropriate reducer fittings and thermometer/pressure gauge test wells.
2. Steam & Condensate System Takeoffs
High-pressure and low-pressure steam piping requires Schedule 40 or Schedule 80 seamless carbon steel, heavy 300# flanged connections, expansion loops, and engineered steam trap stations. We quantify float-and-thermostatic (F&T) traps, thermodynamic disc traps, dirt pockets, strainers, and blowdown piping.
3. Cooling Tower & Condenser Water Circuits
Condenser water lines running between chillers and rooftop or grade-mounted cooling towers are itemized by material—whether roll-grooved carbon steel or underground butt-fused HDPE. We include automated basin equalization lines, chemical water treatment injection quills, and centrifugal sediment separators.
Labor & Joining Technology
Weld-Inch Factoring, Valve Schedules & Commissioning
Mechanical contractors can substantially win or lose on joining methodology labor differences and commissioning requirements. Our estimating packages deliver the data you need for accurate bidding:
Butt-Weld vs. Grooved Mechanical Couplings
We quantify pipe cuts, beveling, and weld-inches for certified pipe welders, while isolating sections where roll-grooved mechanical couplings (Victaulic / Gruvlok) or press-fit copper/carbon steel systems are permitted by specifications, allowing you to optimize your labor productivity.
Automated Valve & Balancing Device Schedules
Every triple-duty valve, calibrated manual balancing valve, automated 2-way/3-way modulating control valve, and check valve is extracted and cataloged by tag, pipe size, and pressure rating (125#, 150#, 250#, 300#), ensuring your supplier buyout has zero missing specialty devices.
Flushing, Chemical Treatment & Hydrostatic Testing
Project specs mandate temporary bypass piping for chemical flushing, dynamic water passivation, hydrostatic pressure testing to 1.5 times working pressure, and glycol freeze-protection charging. We quantify total system fluid volume so chemical procurement is accurately budgeted.
Need Air-Side Systems Estimated?
If your mechanical package includes air handling units, rooftop equipment, or duct distribution, explore our commercial HVAC estimating services.
Explore HVAC Estimating →Need Bid Proposal Preparation?
Protect your mechanical piping bid with a formal scope letter detailing pipe insulation exclusions, equipment tie-in limits, and addenda reviewed. Explore commercial bid estimating services.
Explore Bid Estimating →State-Specific Preconstruction
Priority Regional Mechanical Piping Estimating
Specialized hydronic piping, central plant chilled water headers, and biopharma process piping takeoffs.
Texas Mechanical Piping Estimating
Central chiller plant headers, data center cooling loops, semiconductor cleanroom hydronics, and welded/grooved takeoffs.
Texas Mechanical Piping Scope →California Mechanical Piping Estimating
HCAI hospital chilled water loops, ASCE 7 seismic sway bracing takeoffs, and 316L orbital cleanroom process piping.
California Mechanical Piping Scope →North Carolina Mechanical Piping
Research Triangle Park (RTP) biopharma clean steam, WFI piping, Charlotte central plant chillers, and ASME BPE standards.
North Carolina Piping Scope →Central Plant Preconstruction
Mechanical Piping Drawing Intake & Deliverables Architecture
Hydronic and process piping estimates require rigorous weld-inch quantification, joint method verification, and detailed plant equipment connection scheduling.
Piping Drawing Intake Checklist
- ✓M-Series Piping Plans & Central Plants: Chilled water (CHW), heating hot water (HHW), condenser water (CW), steam, and refrigerant line sets.
- ✓Piping Isometrics & P&ID Schematics: Flow diagrams, riser schematics, valve tag schedules, and mechanical room connection details.
- ✓CSI Division 23 21 00 Specifications: Pipe materials (Schedule 40/80 steel, copper, stainless steel), joint methods (butt-weld, Victaulic, ProPress), and flange ratings.
- ✓Equipment Schedules & Cut Sheets: Chillers, boilers, cooling towers, plate heat exchangers, expansion tanks, and base-mounted pumps.
Deliverable Package Architecture
Delivered in unlocked Microsoft Excel workbooks and color-coded Bluebeam Revu markups. Review our Estimating Methodology and Sample Deliverables Guide:
- Tab 1 — Executive Summary: Footage by diameter, joint method, equipment connections, and labor hours.
- Tab 2 — Welded Carbon Steel: Linear runs, weld-inch counts (butt-weld and socket-weld), and fitting tallies.
- Tab 3 — Grooved / Victaulic: Grooved pipe linear footage, couplings, mechanical tees, and butterfly valves.
- Tab 4 — Copper & Press-Fit: Hard copper tubing, ProPress/MegaPress fittings, and dielectric unions.
- Tab 5 — Valves & Specialties: Triple-duty valves, balancing valves, strainers, flexible connectors, and expansion tanks.
- Tab 6 — Pipefitting & Welding Labor: MCAA standard labor units factored for elevation and prefabrication spooling.
Trade Interconnects
Related Commercial Mechanical & Plumbing Services
Connect process and hydronic piping takeoffs with complementary trade disciplines:
Commercial HVAC
Packaged chillers, boilers, cooling towers, and primary mechanical equipment.
Plumbing Takeoffs
Domestic water supply, sanitary DWV networks, and fixture carrier quantification.
Ductwork Takeoffs
Galvanized sheet metal air distribution, duct poundage, and acoustic lining.
Bid Estimating
Subcontractor quote leveling, crew labor factoring, and bid defense letters.
Frequently Asked Questions
Common questions regarding our mechanical piping estimating services.
Choose your estimating scope
Quantity Takeoff or Priced Estimate?
The right package depends on who will price the quantities and prepare the final bid. Confirm the included work in your project proposal.
Piping scope to confirm before pricing
- Separate systems by service, pipe material, diameter, joint method and insulation specification.
- Identify fittings, valves, supports and equipment trim packages, including the relevant P&IDs and enlarged details.
- Confirm whether the estimate needs material quantities only, installation labor, testing or supplier/equipment allowances.
Need to review the output first? See the takeoff workbook fields and deliverables and estimating methodology, then send your project details.
